Vibro-reduced pneumatic hammers

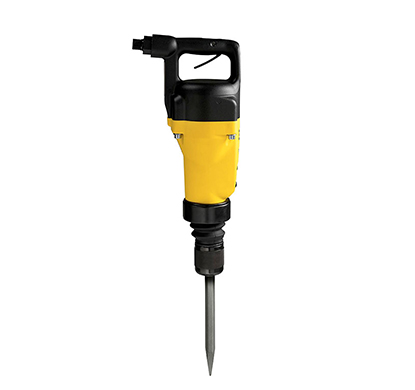

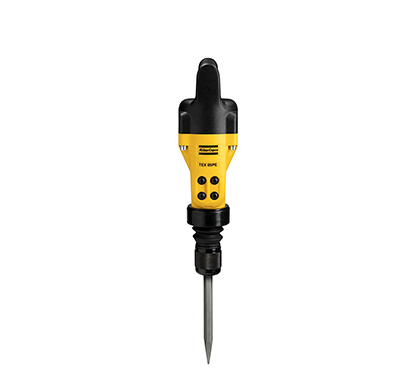

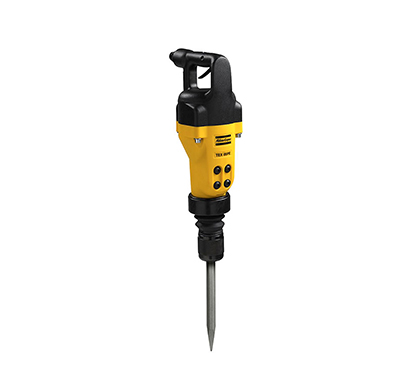

TEX 05 PE

Atlas Copco machine, pneumatic breakers, and hammers are designed to get more work done in a day. HAPS™ technology dampens vibrations and the tool’s single casting design means fewer parts, less fuss. Try an Atlas Copco pneumatic breaker or hammer and you’ll feel the difference: our well-balanced pneumatic tools offer excellent ergonomics

Request a Quote Download Catalogue

Applications

• Light duty chipping and scaling work
• Renovation and conversion work
• Demolition
• Kiln stripping

Features

• Full canopy vibro-reduction (TEX 05, 07, 09 and 12)
• Noise-reduction
• SOFSTART™ two-step trigger
• HAPS™ Hand and Arm Protection System
• Air cushioned piston (TEX 05, 07, 09 and 12)
• Easy handling and positioning

Specification

Pneumatic breakers TEX 05 PE
Weight  (kg) 6,5
Length  (mm) 450
Air consumption  (l/s) 10
Impact rate  (bpm) 2640
Vibration level 3 axes (ISO 28927 10) (m/s2) 2,4
Sound power level guaranteed (2000/14/EC) Lw, dB(A) 105
Sound pressure level (ISO 11203) Lp, r=1m 87
Tool retainer cap
Shank size Hex (mm) 19×50
Part number  (HEX shank) 8461 0219 10
