Pneumatic rock drills (SRD)

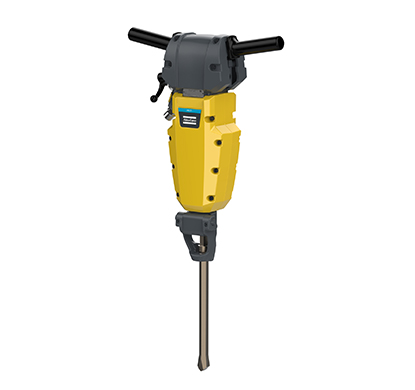

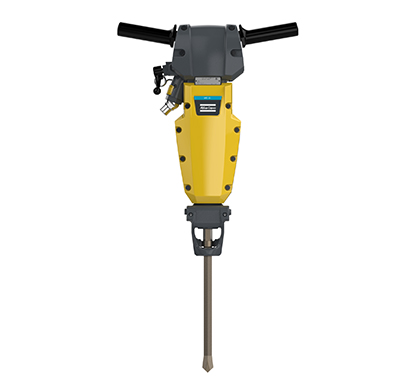

SRD 25

Atlas Copco machine, pneumatic breakers, hammers and pneumatic rock drills are designed to get more work done in a day. HAPS™ technology dampens vibrations and the tool’s single casting design means fewer parts, and less fuss. Try an Atlas Copco pneumatic breaker or hammer and you’ll feel the difference: our well-balanced pneumatic tools offer excellent ergonomics

Request a Quote Download Catalogue

Applications

• Drills up to 6 m depth
• Production drilling in quarry/dimension stone industry
• Blast hole and secondary drilling

Features

• Noise-reduction
• HAPS™ Hand and Arm Protection System
• Built in air flushing
• Extra flushing for quick and efficient hole cleaning with non stop drilling
• Less time for maintenance

Specification

Pneumatic rock drill SRD 25
Weight (kg) 24
Length  (mm) 590
Air consumption at 6.0 bar  (l/s) 39
Impact rate  (blows/min) 1950
Revolutions  (rpm) 200
Penetration rate  (mm/min) 270
Hose connection  (mm) 19
Vibration level 3-axis (ISO 28927-10)  (m/s²) 9
Sound power level guaranteed (2000/14/EC)Lw, dB(A) 111
Shank size Hex (mm) 22×108
Part number 8311 0320 10
