Light pneumatic rock drills

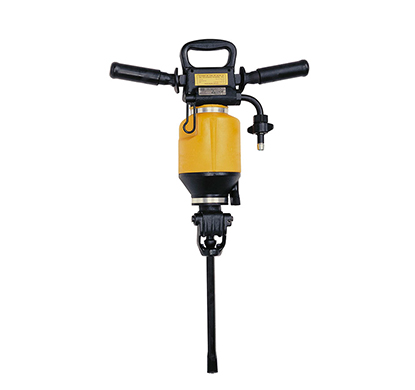

BBD15E

Atlas Copco machine, pneumatic breakers, hammers and pneumatic rock drills are designed to get more work done in a day. HAPS™ technology dampens vibrations and the tool’s single casting design means fewer parts, and less fuss. Try an Atlas Copco pneumatic breaker or hammer and you’ll feel the difference: our well-balanced pneumatic tools offer excellent ergonomics

Request a Quote Download Catalogue

Applications

• Drills up to 2 m depth
• Plug hole drilling
• Anchor and wedge hole drilling

Features

• Noise-reduction (S-versions)
• HAPS™ Hand and Arm Protection System(E-versions)
• Built-in air flushing
• Trigger version available (ET)

Specification

Pneumatic rock drills BBD 15E
Weight kg 15,5 15,5
Length mm 575 575
Air consumption l/s 22 22
Impact rate blows/min 2520 2520
Revolutions rpm 220 220
Penetration rate mm/min 220 ¹) 220 ¹)
Hose connection mm 19 19
Vibration level 3 axes (ISO 20643) m/s² 7 7
Sound power level guaranteed (2000/14/EC) Lw, dB(A) 110 110
Sound pressure level (ISO 11203) (Lp, r=1m) 97 97
Shank size mm 19×108 22×108
Part number 8311 0104 02 8311 0104 10
