Applications
• Drills up to 2 m depth
• Plug hole drilling
• Anchor and wedge hole drilling
Atlas Copco machine, pneumatic breakers, hammers and pneumatic rock drills are designed to get more work done in a day. HAPS™ technology dampens vibrations and the tool’s single casting design means fewer parts, and less fuss. Try an Atlas Copco pneumatic breaker or hammer and you’ll feel the difference: our well-balanced pneumatic tools offer excellent ergonomics
• Drills up to 2 m depth
• Plug hole drilling
• Anchor and wedge hole drilling
• Noise-reduction (S-versions)
• HAPS™ Hand and Arm Protection System(E-versions)
• Built-in air flushing
• Trigger version available (ET)
| Pneumatic rock drills | BBD12TS |
|---|---|
| Weight (kg) | 12,1 |
| Length (mm) | 505 |
| Air consumption (l/s) | 22 |
| Impact rate (blows/min) | 2580 |
| Revolutions (rpm) | 220 |
| Penetration rate (mm/min) | 150 ²) |
| Hose connection (mm) | 19 |
| Vibration level 3 axes (ISO 20643) m/s² | 16 |
| Sound power level guaranteed (2000/14/EC) Lw, dB(A) | 111 |
| Sound pressure level (ISO 11203) Lp, r=1m | 98 |
| Shank size (mm) | 22×108 |
| Part number | 8311 0102 98 |

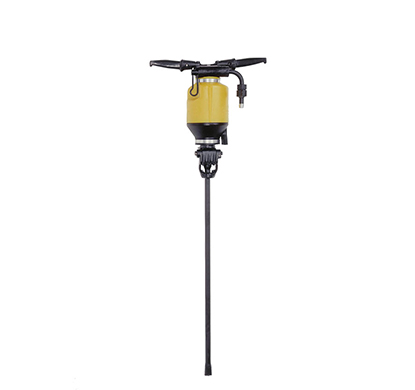

BBD12TS
