Baudouin offers a wide range of marine generator sets designed for use under the most extreme marine conditions. Baudouin’s wide range of marine products offers you a one-stop shop for marine power and control solutions.
| Rating | Frequency | RPM | kWm | kWe | kVa |
| PRP | 50 Hz | 1500 | 560 | 532 | 665 |
| PRP | 50 Hz | 1500 | 680 | 640 | 800 |
| PRP | 50 Hz | 1500 | 770 | 732 | 915 |
| PRP | 50 Hz | 1500 | 820 | 780 | 975 |
| PRP | 50 Hz | 1500 | 880 | 840 | 1050 |
| PRP | 60 Hz | 1800 | 680 | 644 | 805 |
| PRP | 60 Hz | 1800 | 806 | 760 | 950 |
| PRP | 60 Hz | 1800 | 920 | 880 | 1100 |
| Model | Injection | Speed Control | Cylinder Configuration | Bore/stroke (mm) | Displacement (l) |
| 12 M26.2 | Mechanical | Electronic | 12 in V | 150×150 | 31.80 |
– 50/60Hz Frequency, 4 Pole
– Insulation / Heating Class H/H
– Electronic voltage regulation
– Brushless excitation
– IP23 Protection, Marine impregnation
– Single bearing
| A – Length | B – Width | C – Height | Weight | |
| 975 KVA 50 Hz
955 KVA 60 Hz |
3706 | 1550 | 1495 | 5700 |
| 1050 KVA 50 Hz
1100 KVA 60 Hz |
3933 | 1550 | 1495 | 6500 |

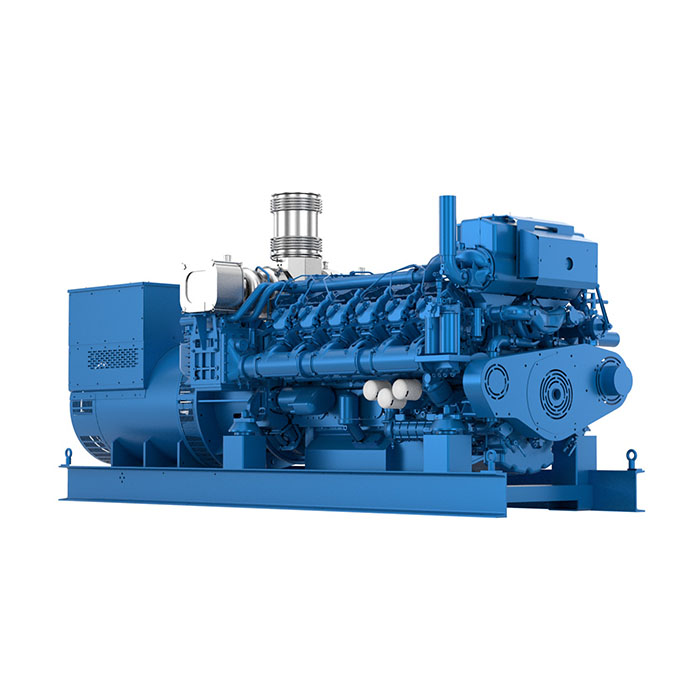

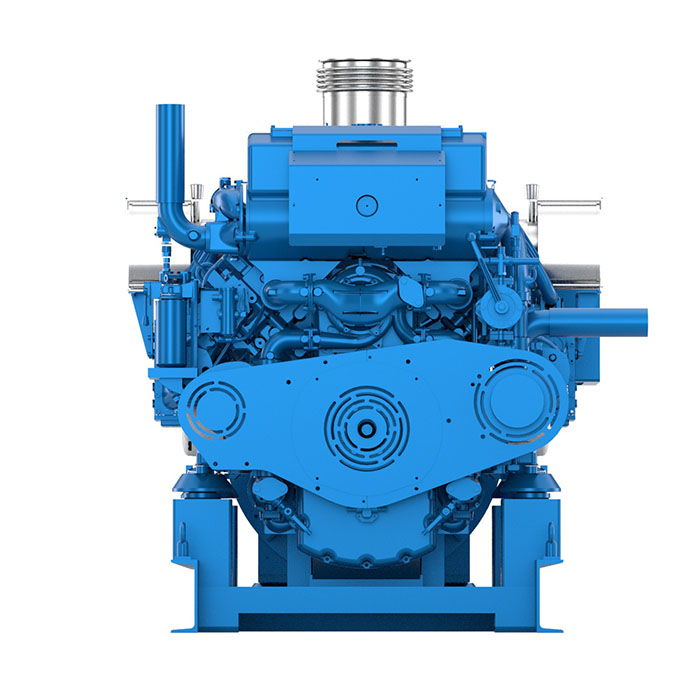

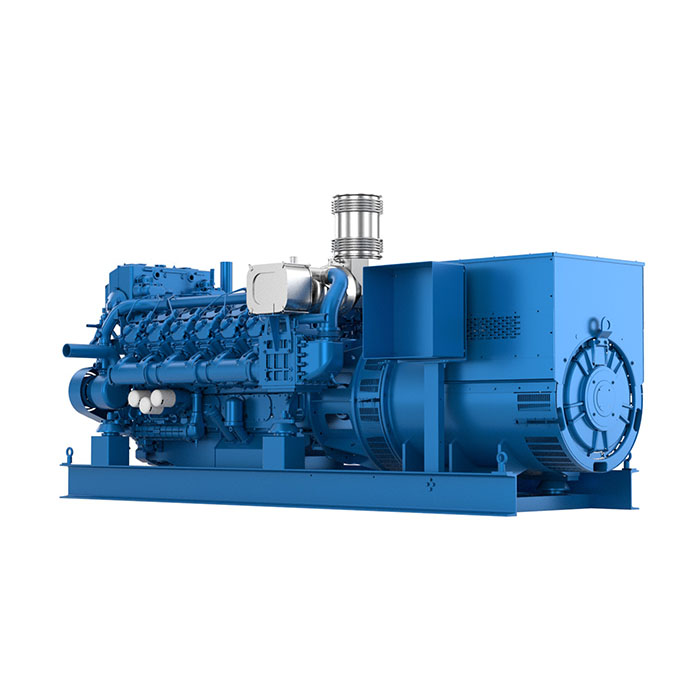

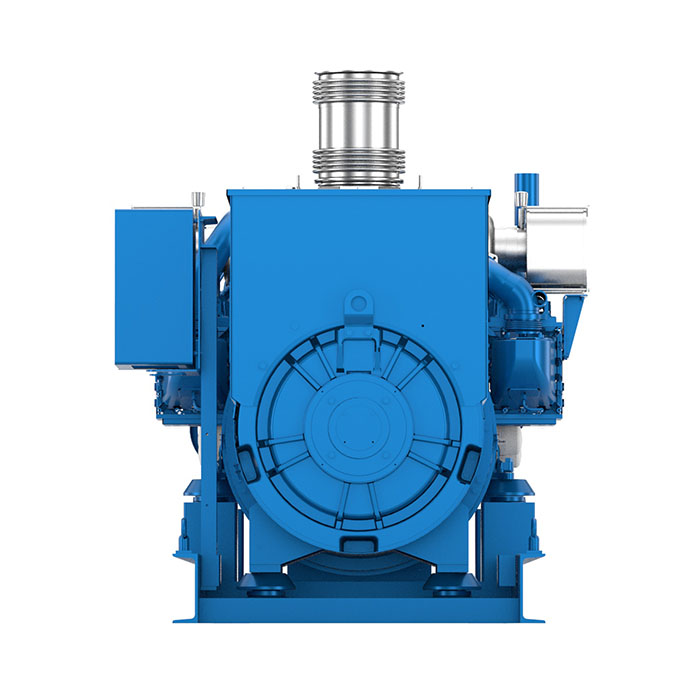

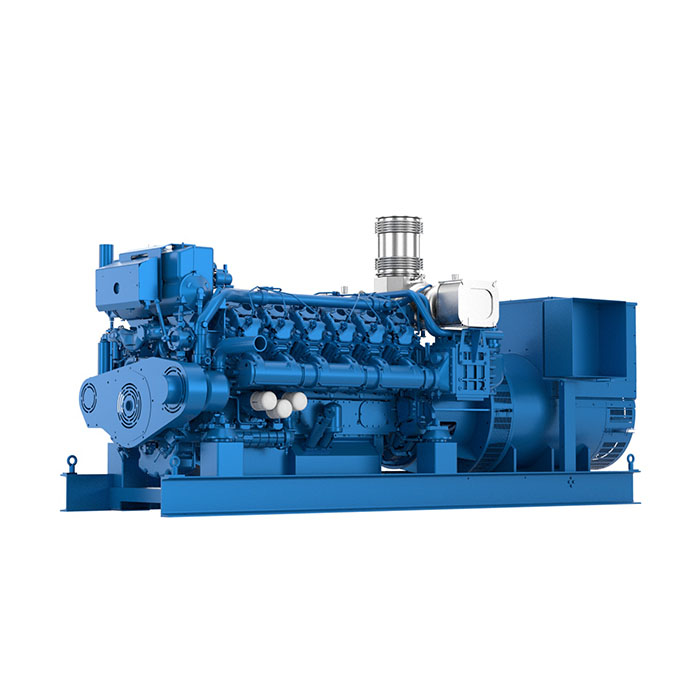

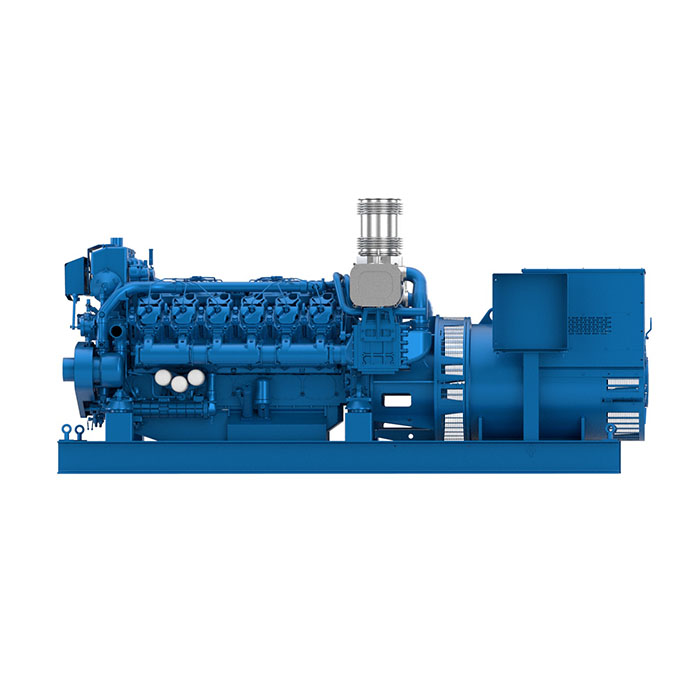

12 M26.2 Marine Generator
